▼HotelBooking

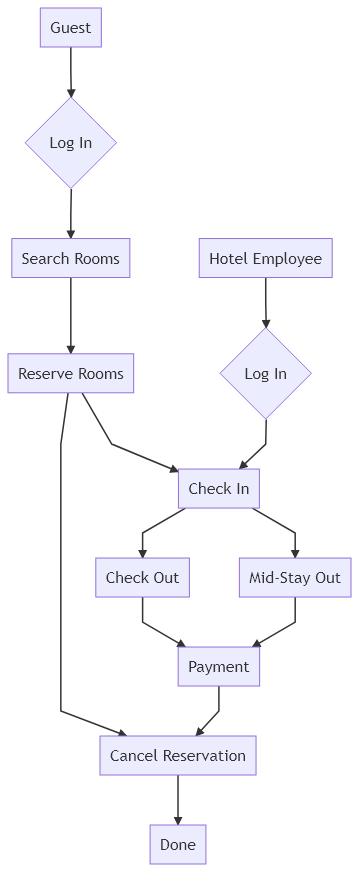

WORKFLOW


Notes:

reservation entries created upon Booking
- one per night per room type
- marked done upon Guest cancel or checking out
order entries created upon Checking In
- per night per room
- marked done upon Guest cancel or checking out
A Guest holds the reservation until he checks out
A Guest check in
- copies over his Reservations entries into orders
- associates room number and current prices to created orders

Site Roles

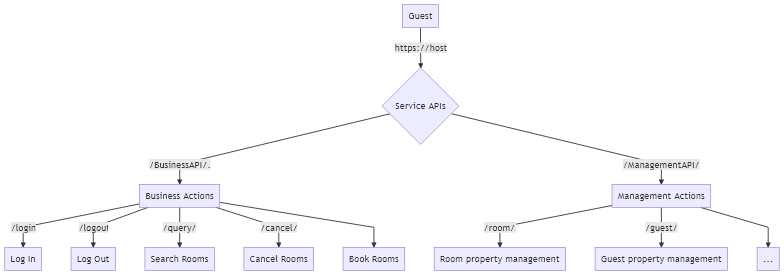

Guest

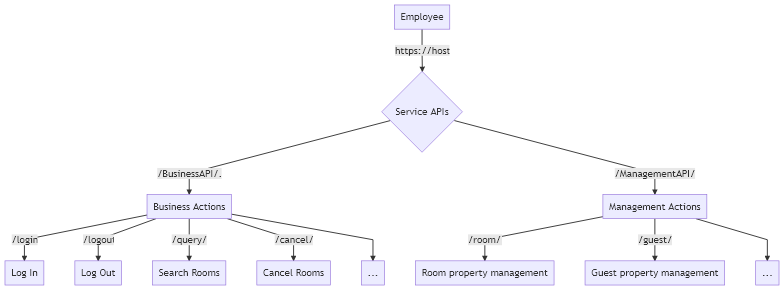

Hotel Employee


User cases

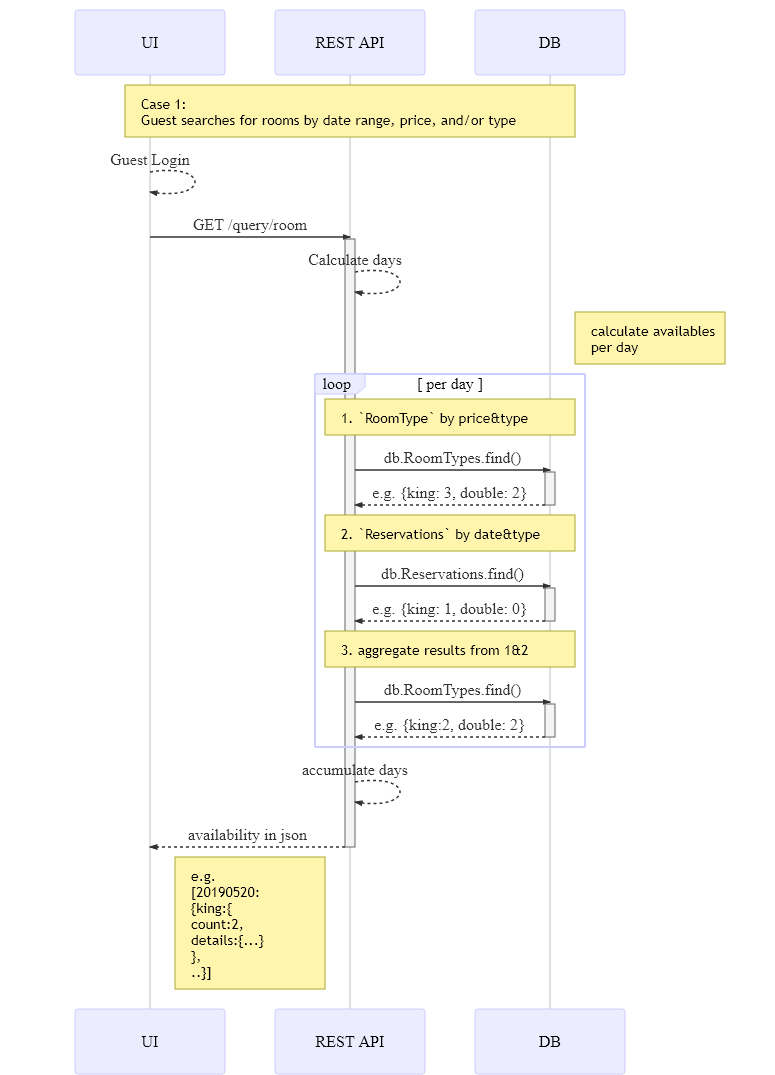

1. Guest searches for rooms by date range, price, and/or type

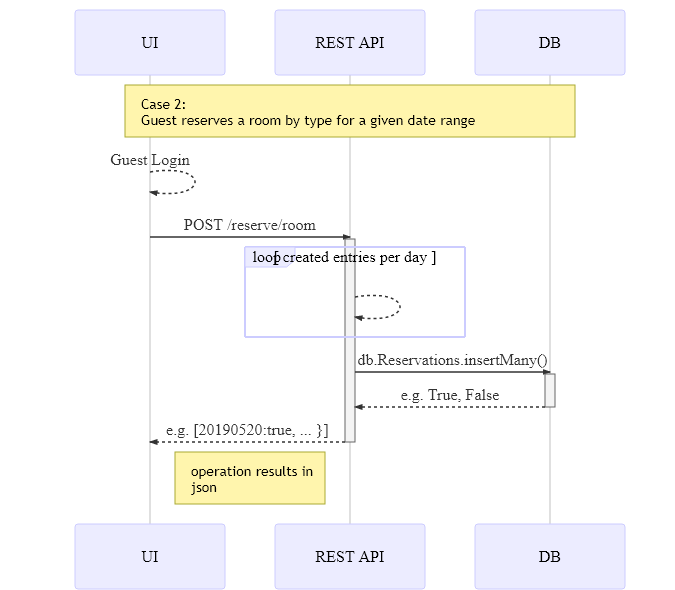

2 Guest reserves a room by type for a given date range

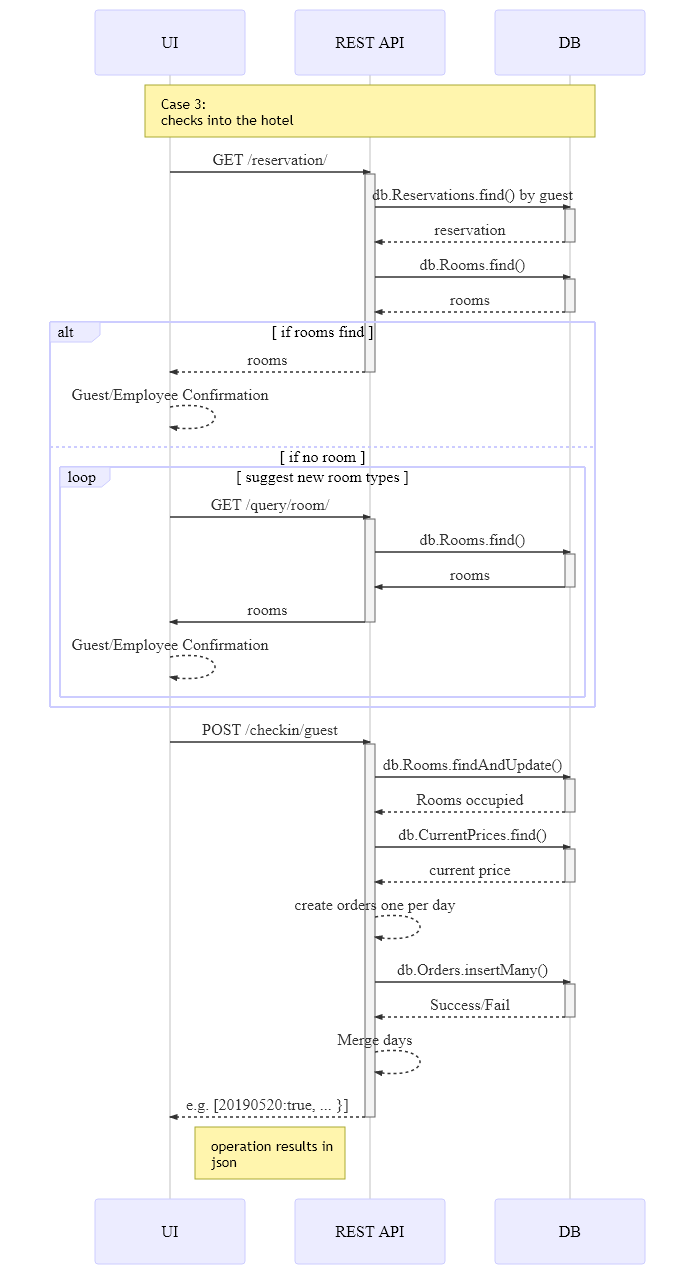

3 Guest checks into the hotel

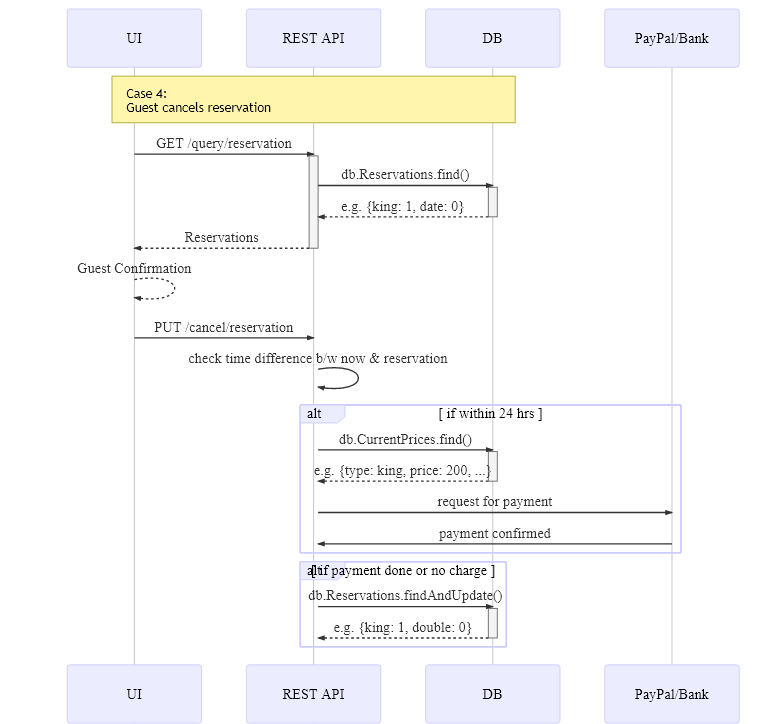

4 Guest cancels reservation

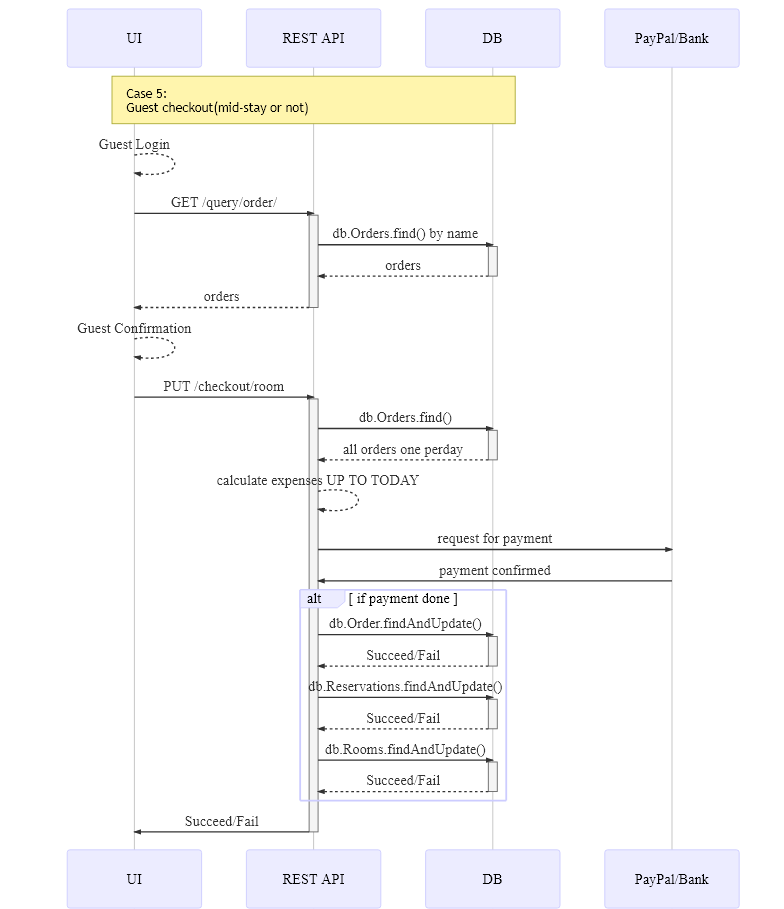

5 Guest checks out

Models and Relationships

controllers






Models








,

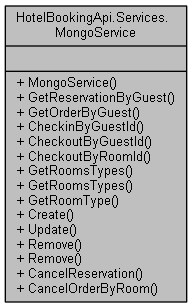

Services
